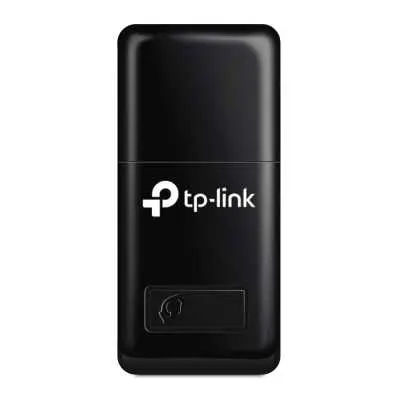

WiFi USB adapter 300M Wireless N Mini realtek
Technikai Specifikáció, műszaki Info :
TP-LINK TL-WN823N 300M Wireless USB adapter Mini (realtek), USB 2.0, Wi-Fi Protected Setup (WPS) Button, Belső antenna, IEEE 802.11b/IEEE 802.11g/IEEE 802.11n, 11Mbps/54Mbps/300Mbps, 64/128-bit WEP, WPA-PSK/WPA2-PSK, WPA/WPA2
HARDWARE FEATURES
Interface
USB 2.0
Button
Wi-Fi Protected Setup (WPS) Button
Dimensions (W X D X H)
1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm)
Antenna Type
Internal
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency
2.400~2.4835GHz
Signal Rate
11b: Up to 11Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
EIRP
<20dBm (EIRP)
Reception Sensitivity
300M: -65dBm@10% PER
270M: -65dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -72dBm@10% PER
11M: -85dBm@8% PER
6M: -87dBm@10% PER
1M:-93dBm@8% PER
Wireless Modes
Soft AP Mode
Client Mode (support Ad-hoc/Infrastructure network)
Wireless Security
64/128-bit WEP
WPA-PSK / WPA2-PSK
WPA / WPA2
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
OTHERS
Certification
CE, FCC, IC, RoHS
Package Contents
Wireless Adapter TL-WN823N
Resource CD
Quick Installation Guide
System Requirements
Windows 7(32/64bits)
Windows Vista(32/64bits)
Windows XP(32/64bits)
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
