miniGBIC modul 1000Mbps
Technikai Specifikáció, műszaki Info :

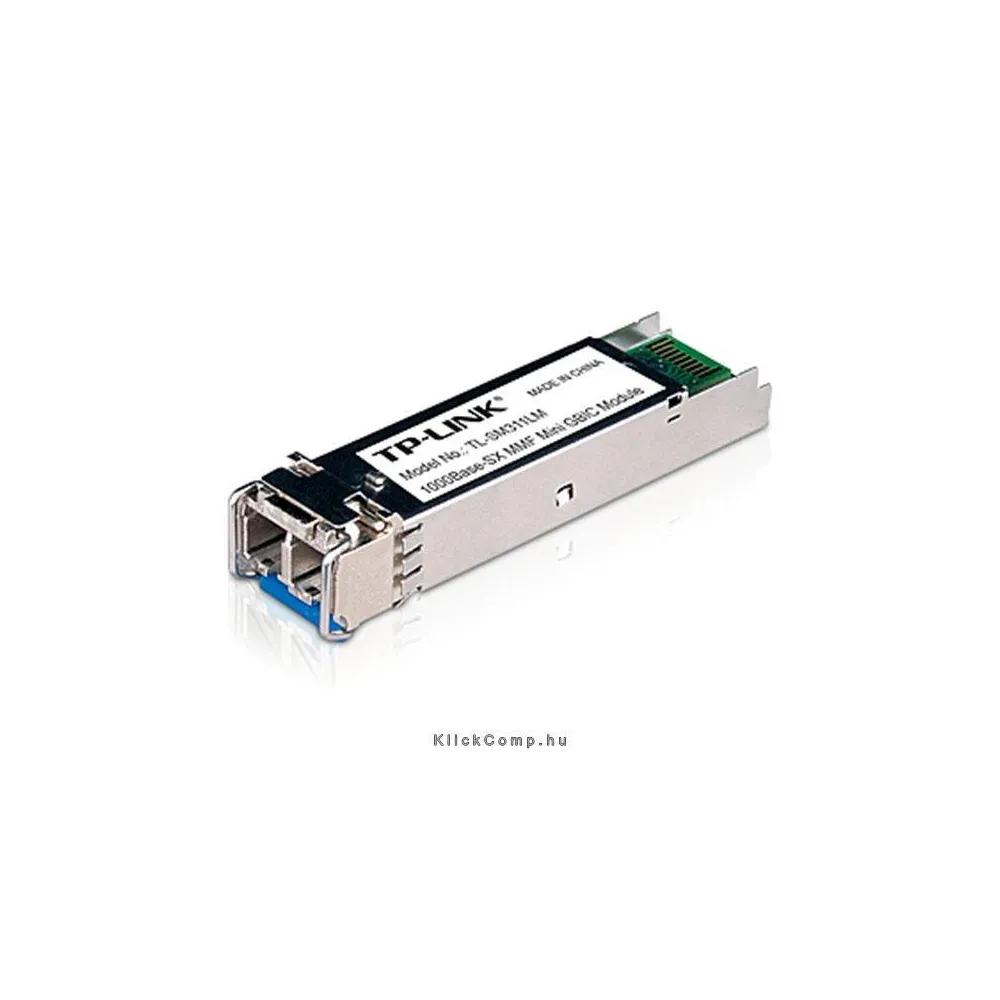

TP-Link TL-SM311LM miniGbic modu, Supports full-duplex, Plug-and-Play, Supports Pull-or-Plug with power on switches, Power: internal power from switches
Standards and Protocols
IEEE 802.3z, CSMA/CD, TCP/IP
Wave Length
850nm
Power Supply
3.3V
Cabel
Multi-mode Fiber
Fiber Type
50/125um or 62.5/125um Multi-mode
Max. Cable Length
550m
Data Rate
1.25Gbps
Port Type
LC
Safety & Emission
FCC, CE
Environment
Operating Temperature: 0?~70? (32?~158?)
Storage Temperature: -40?~80? (-40?~176?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
