Star nyomtató, automata vágóva

Termál; 150 mm/sec.; 112 / 80mm; Robosztus, strapabíró, beépíthető kioszk-nyomtató automata vágóval. Opcióban rendelhető: tápegység (PS60A), 25cm papírtekercstartó (RHUT900), interfész párhuzamos(IF-BDHC04) soros(IF-BDHD04) USB(IF-BDHU04) Ethernet(IF-BDHE06).


Star TUP900 Kiosk Printer gyártói weboldal

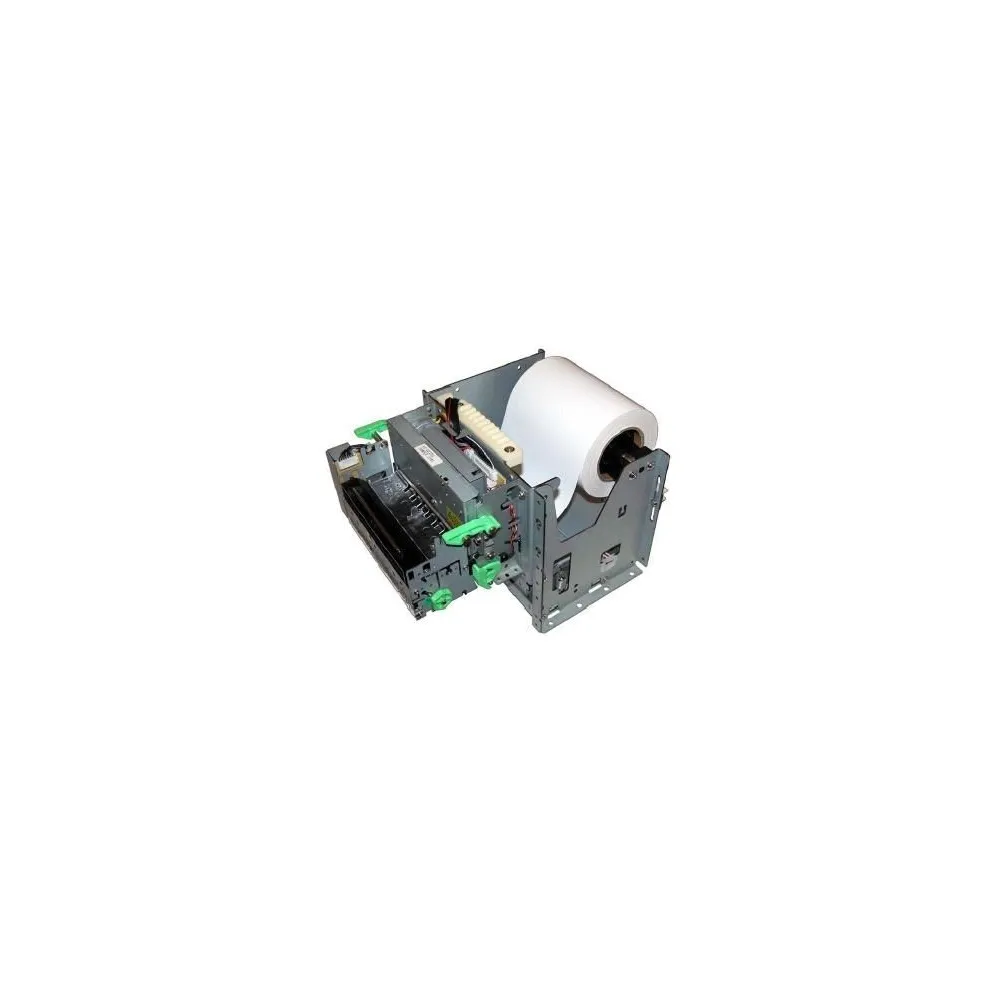

Star TUP900 Kiosk Printer

Műszaki adatok

Modell: TUP942-24 112m Kiosk, Thermal, Friction, 2 Color, Cutter, No Presenter, Ext PS

Printer Method
Direct Line Thermal

Print Speed
150 mm/sec

Print Resolution
203 dpi (8 dots per mm)

Top Margin
15mm (3mm Selectable)

International Code Pages
Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes
UPC-A, UPC-E, JAN/EAN-8 JAN/EAN-13, ITF, CODE39, CODE93, CODE128, CODABAR

Paper Specifications
Width
58 mm Min to 112 mm Max

Thickness
0.065 ~ 0.15 mm

Roll Diameter
Up to 6” Standard / 7” – 10” Option (Using RHU-T900 Large Paper Roll Holder)

Easy-Load
"Drop-In & Print"

Paper Out Sensor
Standard

Paper Low Sensor
Standard

Black Mark Sensor
Standard


Logo Store Capacity
2 Mbit

Multiple Copy Support
Supported through 2nd Copy Raster Driver

Journal Capability
N/A

Label Support
TUP942 Only

Power Supply
External; Requires PS60A External Power Supply

Drivers Available
Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO, Scalable Raster Driver

Digitally Signed (WHQL)
N/A
Swappable Interfaces
Yes

Connectivity
Serial, Parallel, USB

Emulation Modes
Star Mode, ESC/POS™

Peripheral Drive Circuit
2 circuits, (24V max. 1A), 1 Compulsion input

Operating Conditions
Temperature: 0oC to 50oC
Humidity: 10% - 80% RH (without condensation)

Storage Conditions
Temperature: -20oC to 60oC
Humidity: 10% - 90% RH

TUP992 Dimensions
Weight
192(W) x 179(D) x 249.3(H) mm
2.84 kg

Safety Standards
CE, FCC, VCCI, EN55022

Reliability MCBF
37 Million Lines

Print Head
100km

Auto Cutter
1 Million Cuts

Warranty
3 Year Limited Manufacturer Warranty (US and Canada)

Options
External Power Supply (PS60A)
TUP942 Presenter Unit (PR900)
Large Paper Roll Holder (RHU-T900)
Thermal Printer Mechanism (TMP942)
