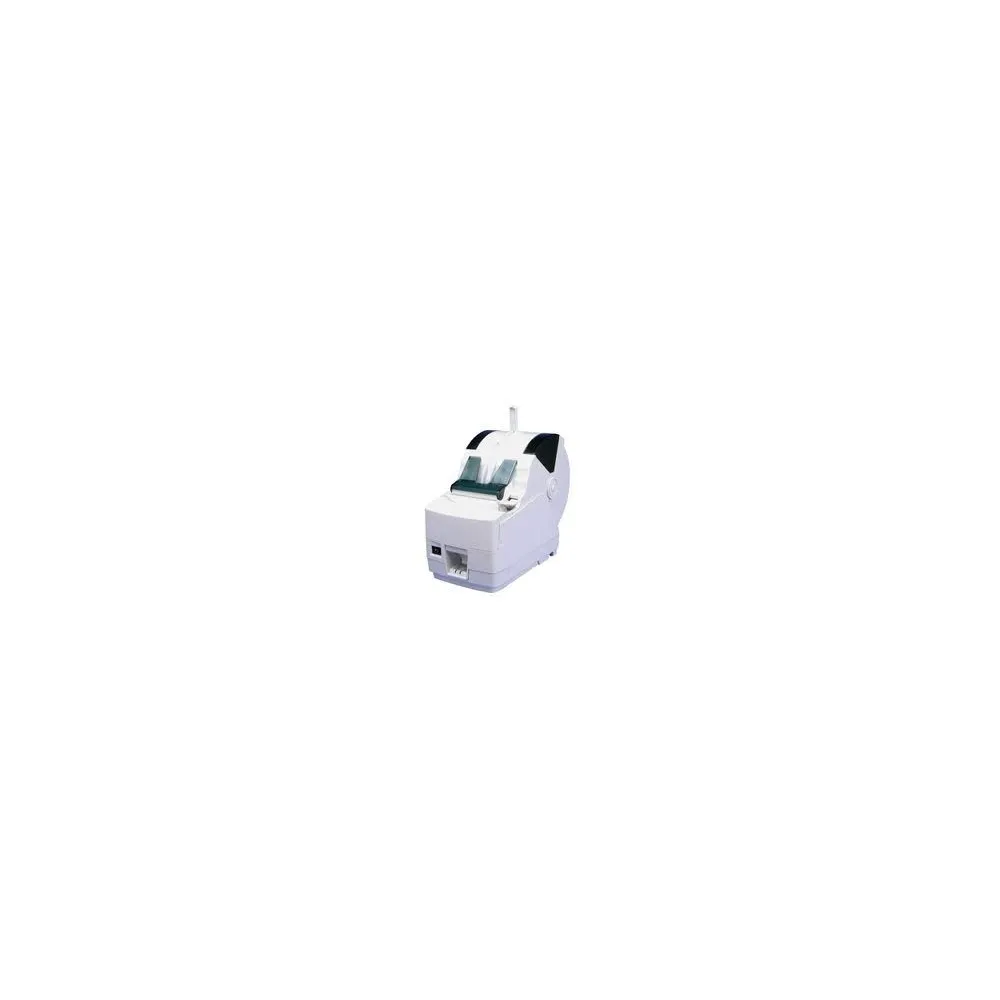

Star TSP1000 POS nyomtató Blokk-Nyomtató, soros, vágó, fehé

Termál; 180 mm/sec.; Soros; 44 - 82.5mm; 180mm papírtekercs átmérő, 105 µm papírvastagság, reflektiv szenzor címkékhez, papírfogyás érzékelő, 24V (tápegység nélkül), MCBF 60 millió sor, automatikus vágó, stacker (papírgyűjtő) Opcióban rendelhető: tápegység (PS60A) (TSP1043 + IF-BDHD04)


STAR TSP1000 gyártói weboldal

STAR TSP1000

Műszaki adatok

Printer Method
Direct Line Thermal

Print Speed
34 Receipts Per Minute (180 mm/sec)

Printer Case Color
Putty or Gray Standard
Red, Blue, or Custom Color Available for Large Orders

Model Available
Auto Cutter Only

Print Resolution
203 dpi (8 dots per mm)

Two Color Print Capability
Red & Black / Blue & Black / Green & Black (Two color thermal paper required)

No. of Columns
Star Mode = 40, ESC/POS™ = 10 + 1 blank allowing an additional character page to be added

Font Size
12 x 24

Character Set
ANK 95, 32 Int 128 Graphic

International Code Pages
Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes
9 versions / PDF 417 Option

Line Spacing
3 mm or 4 mm or programmable


Paper Specifications
TSP1043 Width
80 mm Standard; Adjustable 45 – 82.5 mm
TSP1045 Width
82.5 mm Standard; Adjustable 45 – 82.5 mm

Thickness
0.065 ~ 0.15 mm
Roll Diameter
Up to 7 in (180 mm) (Dependant on Paper Weight)
Easy-Load
"Drop-In & Print"
Paper Out Sensor
Standard
Black Mark Sensor
Standard
Paper Low Sensor
Standard
Maximum Print Width
80mm Maximum
Left/Right Margin
0mm (Left or Right); 1st Column Print Supported

Top Margin
12 mm minimum default

Ticket Stacker
Standard; 30 Receipts or Tickets Maximum with Ticket Sensor

Ticket Length
50-300 mm

Auto Cutter
Guillotine (Full Cut Only)

Cutter Position
Approximately 11mm distance between cutter and top of form

Cover Open Sensor
Yes

Logo Store Capacity
2 Mbit

Flash ROM / SRAM
2 x 8 Mbit plus 2 x 1 Mbit Static RAM

Journal Capability
N/A

Label Support
Yes; Black timing marks between labels required

Power Supply
External; Requires PS60A External Power Supply

Drivers Available
Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, USB Vendor Class, Linux™, Mac OS X, StarIO SDK

Digitally Signed (WHQL)
N/A

Swappable Interfaces
Yes

Connectivity
Serial, Parallel, USB, or Ethernet

Emulation Modes
Star Mode, ESC/POS™

Peripheral Drive Circuit
1 circuits, (24V max. 1A), No Compulsion input

Power Consumption
Average 2.0 Amp. Printing, 0.1 Amp. Standby
Requires PS60A External Power Supply

Operating Conditions
Temperature: 5oC to 45oC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions
Temperature: -20oC to 60oC
Humidity: 10% - 90% RH

Dimensions
Weight
161mm(W) x 306.5 (D) x 249(H) mm
3.0 kg

Safety Standards
UL, C-UL, TüV, FCC, VCCI, EN55022, CE, CB

Reliability MCBF
60 Million Lines

Print Head
100km

Auto Cutter
1 Million Cuts

Included with Printer
User Manual, Set Up Guide, Paper Stopper, Power Switch Cover, Ferrite Core, Roll Paper Holders (TSP1043 Only), Roll Paper Shaft (TSP1043 Only)

Warranty
3 Year Limited Manufacturer Warranty (US and Canada)

Options
External Power Supply (PS60A)
24V Mobile Power Supply
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
