Star TUP500 POS nyomtató Blokk-Nyomtató, automata vágóva

Thermo ház nélküli nyomtató; nyomtatási sebesség 180 mm/sec (akár 220mm/s); papír szélesség: min. 45mm max. 82.5mm; Robosztus, strapabíró, beépíthető kioszk-nyomtató automata vágóval. Opcióban rendelhető: tápegység (PS60A), interfész párhuzamos(IF-BDHC04) soros(IF-BDHD04) USB(IF-BDHU04) Ethernet(IF-BDHE06), 25cm papírtekrecs tartó(RHU-T500).


Star TUP500 Kiosk Printer gyártói weboldal

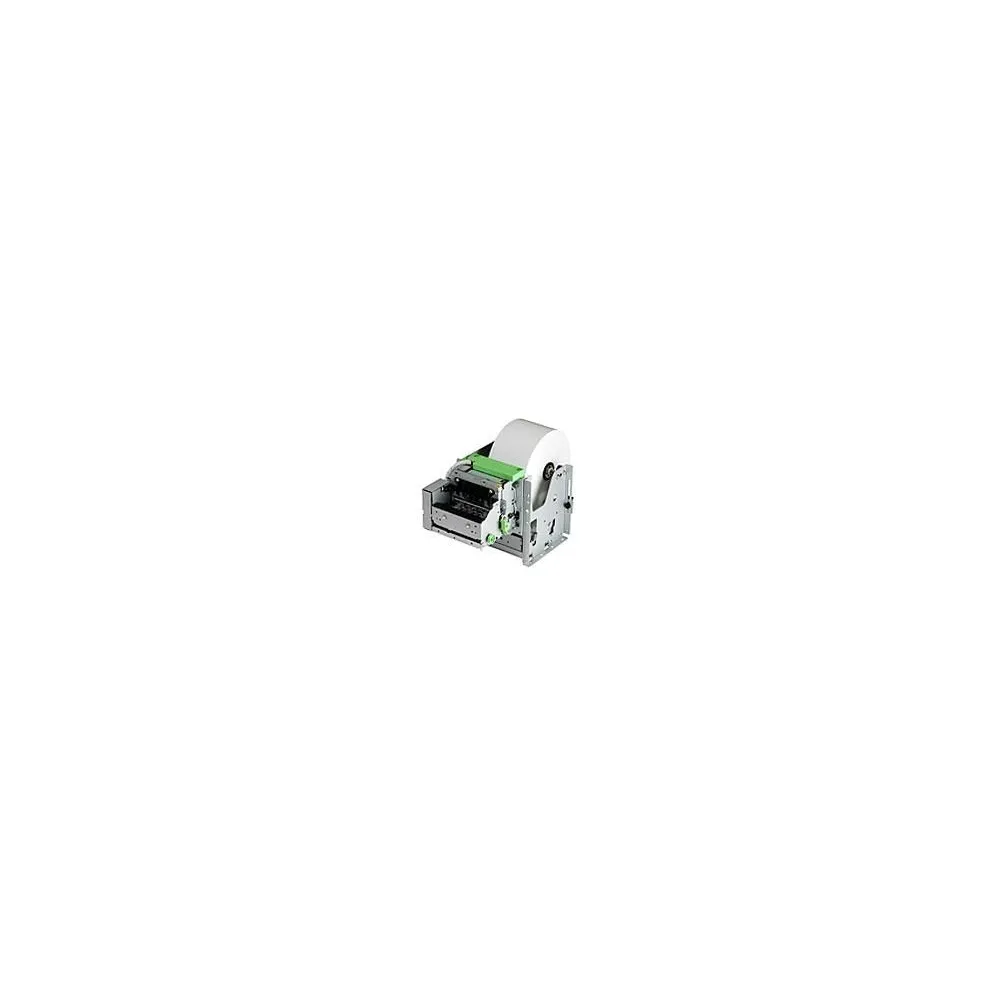

Star TUP500 Kiosk Printer

Műszaki adatok

TUP592-24 THERMAL PRINTER 80mm Kiosk, Thermal, Friction, 2 Color, Presenter, Ext PS
TUP542-24 80mm Kiosk, Thermal, Friction, 2 Color, Ext PS

Printer Method
Direct Line Thermal

Print Speed
Up to 220mm/sec

Models Available
Presenter (TUP592) or No Presenter (TUP542)

Print Resolution
203 dpi (8 dots per mm)

Top Margin
11mm (3mm Selectable)

International Code Pages
Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes
UPC-A, UPC-E, JAN/EAN-8 JAN/EAN-13, ITF, CODE39, CODE93, CODE128, CODABAR

Paper Specifications
Width
45 mm Min to 82.5 mm Max
Thickness
0.065 ~ 0.15 mm
Roll Diameter
Max 150mm (Max 254mm with Large Paper Roll Holder)
Easy-Load
Hassle free paper loading
Paper Out Sensor
Standard
Paper Low Sensor
Standard
Black Mark Sensor
Standard

Auto Cutter
Guillotine (Full Cut)

Logo Store Capacity
2 Mbit

Multiple Copy Support
Supported through 2nd Copy Raster Driver

Journal Capability
N/A

Label Support
TUP542 Only

Power Supply
External; Requires PS60A External Power Supply

Drivers Available
Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK

Digitally Signed (WHQL)
Yes

Swappable Interfaces
Yes

Connectivity
Serial, Parallel, USB, Ethernet

Emulation Modes
Star Line Mode, Page Mode, ESC/POS™

Operating Conditions
Temperature: 0oC to 50oC
Humidity: 10% - 80% RH (without condensation)

Storage Conditions
Temperature: -20oC to 60oC
Humidity: 10% - 90% RH

TUP592 Dimensions
160(W) x 234(D) x 179(H) mm

TUP542 Dimensions
160(W) x 185(D) x 179(H) mm

Safety Standards
CE, FCC, VCCI, EN55022

Reliability MCBF
60 Million Lines

Print Head
100km

Auto Cutter
1 Million Cuts

Warranty
3 Year Limited Manufacturer Warranty (US and Canada)

Options
External Power Supply (PS60A)
TUP542 Presenter Unit (PR521)
Large Paper Roll Holder (RHU-T500)
Thermal Printer Mechanism (TMP542)
Flashing LED Bezel
